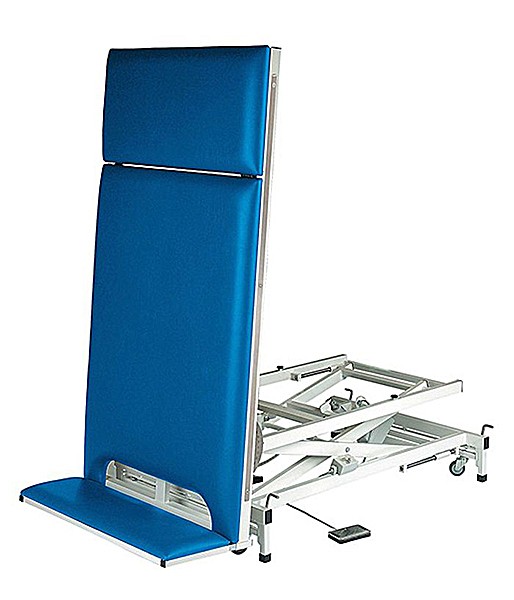

Therapeutic Tilt Tables / Standing Board

This tilt table/standing boards can be used for many different treatment methods. They are particularly suitable for the treatment of neurologically-ill, head, back or spinal cord injury patients.

In order to provide the patient with the physical and mental security required for the treatment, a combination of the cut-out in the foot section and extra large, removable footrest was specially developed for these tilt tables.

The electric height and tilt adjustments are controlled by two maintenance-free and ultra-quiet motors.

  • Pair of standard side rails (length 1560 mm)
  • Mobile base on retractable castors controlled by a foot pedal (castors Ø 75mm)
  • Built-in protractor (angle indicator) for a quick and precise reading of the tilt angle
  • Removable footrest (320 x 800/1000 mm, LxW)
  • Safety lock-box
  • Hand and foot switches.
  • Height and tilt adjustment mechanism – electric with foot or hand switch
  • Height adjustment range 520 – 960 mm
  • Width – 800 mm / 1000 mm
  • Length – 1900 mm (head section 500 mm, main section 1400 mm)
  • Removable footrest
  • Built-in protractor
  • Mobility system on retractable casters, Ø 75 mm
  • Maximum load – 130 kg
  • Frame – lacquered
  • Upholstery thickness – 64 mm,
  • 21 Upholstery Colours available
  • Made in Germany
  • 3-year warranty
